OEM Number: 4M513A713DA, 4M513A713DB, 4M513A713DC, 4M513A719BD, 1743278, 1747039, 1306012, 1312908, 1320338, 1335275, 1377497, 1743278, 1747039, 1306012, 1312908, 1320338 1335275, 1377497, 1477840, 1469171, 1377495 1377923, 1487149, 4M513A719BA, 4M513A713DA 4M513A713DB, 4M513A713DC, 4M513A719BD 4M513A719BE, 4M513A719DA, 4M513A719DB

Product Details:

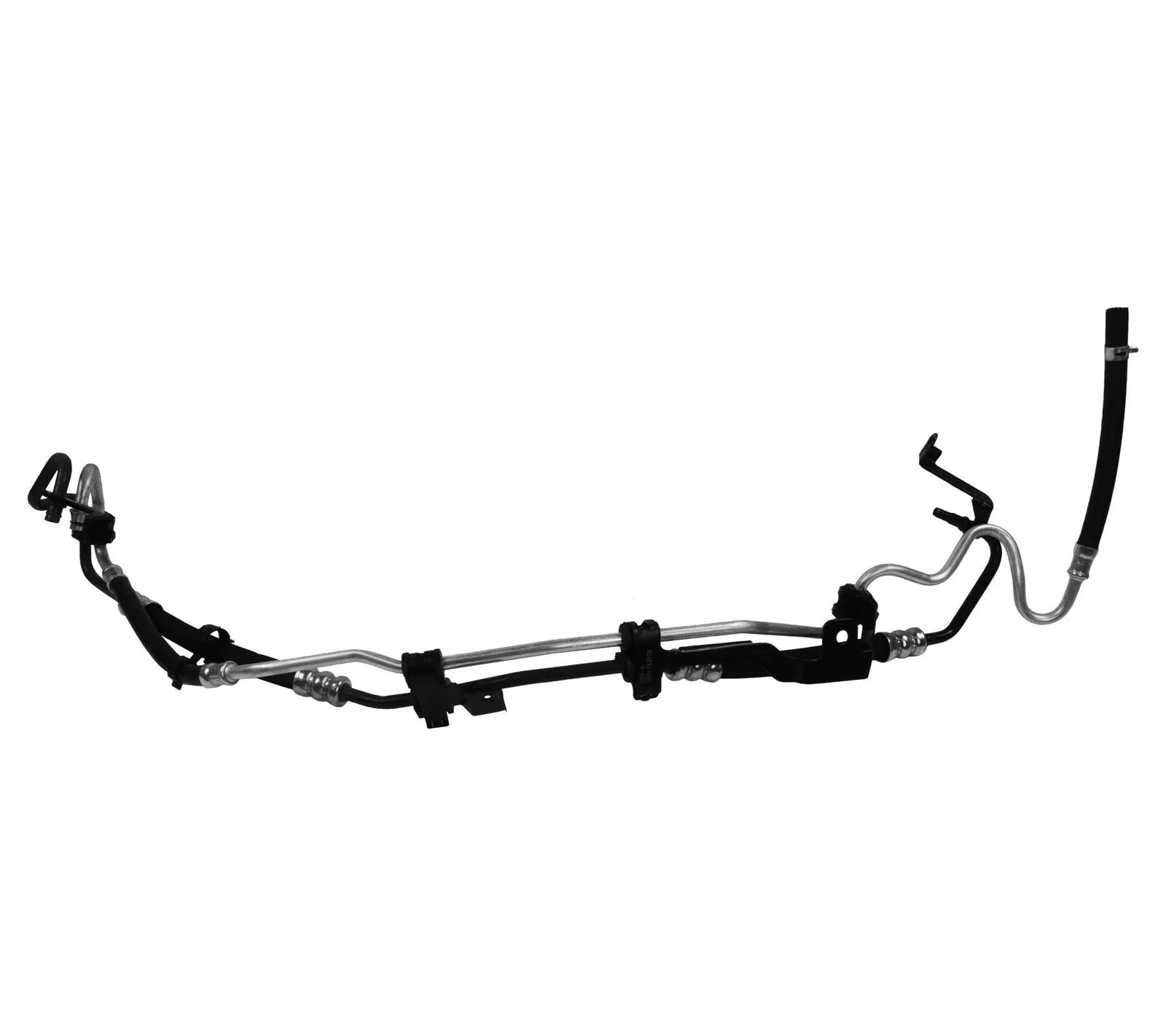

Power Steering Pipes Hose + Nut for Ford Focus 2004-2011 1743278 1 YEAR WARRANTY

Ford have modified their pipes and the replacement may be slightly longer than the original so that you can do away with the oil cooler if you choose to.

Do not fit the one use nut on to the new pipe first. Screw the nut into its housing then push in the pipe FULLY.

Remove the cover underneath the engine, the driver side headlight and move the coolant and power steering reservoirs to give better access.

You may not need to remove the serpentine belts to fit the new pipe but do your own research.

The pipes are easy to remove underneath to the rear of the engine bay but the 2 in the engine bay can be a challenge.

You may wish to cut the original metal pipe so that you can get an 18mm socket on the old connector nut to remove it.

Screw your new connector nut in and then install the hose/pipe combination.

Don’t bolt up the chassis mountings until the pipes are home as the whole lot is under a bit of tension when all fitted.

The reservoir hose is a simple push fit. IMPORTANT. Screw the nut in to the housing before fitting the pipe.

Then you need to push the pipe fully home into the steering pump connector nut and it’s a very tight fit, tighten up the 3 chassis connections and put the reservoirs and headlight back in place.

Parameter : Pressure Hose, From Pump

FOR RIGHT HAND DRIVE VEHICLES

RETURN HOSE, FOR VEHICLES WITH MANUAL TRANSMISSION.

Fitting Position : From Steering Gear to Cooling Pipe

DIAMETER OF THE NUT/BOLT : 19mm

Quantity : 1

DOES NOT FIT MODELS WITH ELECIC PUMP OR AUTOMATIC GEARBOX

Make	Model	Variant	Type	Engine	Chassis	Year
Ford	C-Max	Petrol MPV	1.6	1596cc 74KW 100HP HWDA;HWDB;SHDA;SHDB;SHDC	FWD -- DM2	2007-2010
Ford	Focus	Petrol Convertible	1.6	1596cc 74KW 100HP HWDA;HWDB;SHDA;SHDB;SHDC	FWD II --	2006-2010
Ford	Focus	Petrol Estate	1.4	1388cc 59KW 80HP ASDA;ASDB	FWD II DA_,FFS,DS	2004-2012
Ford	Focus	Petrol Estate	1.6	1596cc 74KW 100HP HWDA;HWDB;SHDA;SHDB;SHDC	FWD II DA_,FFS,DS	2004-2011
Ford	Focus	Petrol Estate	1.6 Ti	1596cc 85KW 115HP HXDA;HXDB;SIDA	FWD II DA_,FFS,DS	2004-2012
Ford	Focus	Petrol Hatch	1.4	1388cc 59KW 80HP ASDA;ASDB	FWD II DA_,HCP,DP	2004-2012
Ford	Focus	Petrol Hatch	1.6	1596cc 74KW 100HP HWDA;HWDB;SHDA;SHDB;SHDC	FWD II DA_,HCP,DP	2004-2012
Ford	Focus	Petrol Hatch	1.6 Ti	1596cc 85KW 115HP HXDA;HXDB;SIDA	FWD II DA_,HCP,DP	2004-2012
Ford	Focus	Petrol Saloon	1.4	1388cc 59KW 80HP ASDA;ASDB	FWD II DB_,FCH,DH	2005-2012
Ford	Focus	Petrol Saloon	1.6	1596cc 74KW 100HP HWDA;HWDB;SHDA;SHDB;SHDC	FWD II DB_,FCH,DH	2005-2012
Ford	Focus	Petrol Saloon	1.6 Ti	1596cc 85KW 115HP HXDA;HXDB;SIDA	FWD II DB_,FCH,DH	2005-2012
Ford	Focus C-Max	Petrol MPV	1.6	1596cc 74KW 100HP HWDA;HWDB;SHDA;SHDB;SHDC	FWD -- DM2	2003-2007
Ford	Focus C-Max	Petrol MPV	1.6 Ti	1596cc 85KW 115HP HXDA;SIDA	FWD -- DM2	2004-2007
Make	Model	Variant	Type	Engine	Chassis	Year

Our SKU: TFO1743278_313

All our Power Steering Pipe Hose And Nut are OEM quality and reliable after market car parts. This Power Steering Pipe Hose And Nut is specifically compatible with Ford: C-Max, Focus, Focus C-Max, .

Please use our make-model-year tool to check this part's compatibility with your vehicle. However, please note that our tool is for reference only and we recommend that you check the part number on your old unit prior to purchasing.

If you are still not sure about the compatibility of this part to your vehicle, please supply us with the VIN number or Reg number in our live chat or contact form! You can also find details on our purchasing & shipping guide here.
