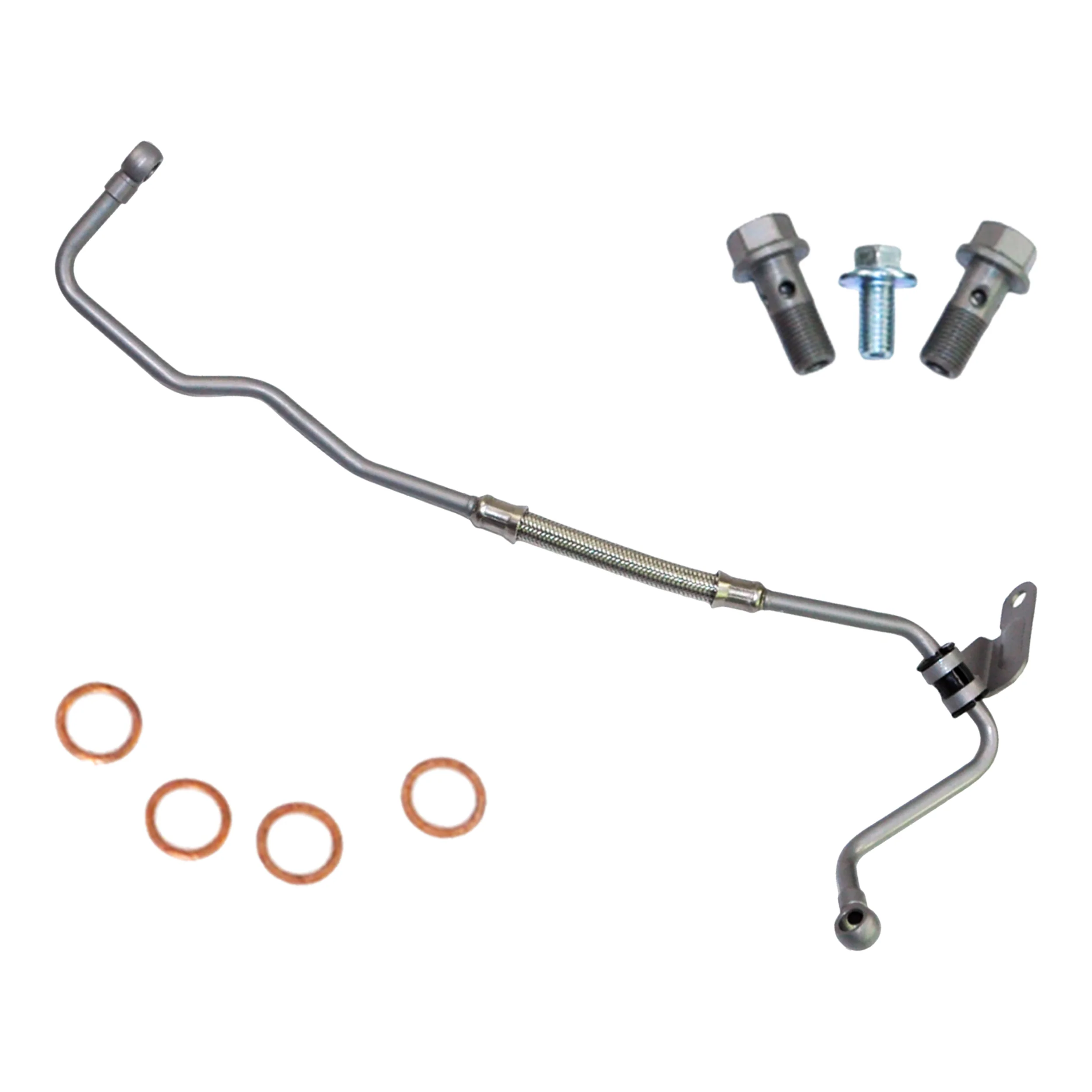

Protect your turbocharger and maintain peak engine performance with this high-quality Turbo Oil Feed Pipe, designed specifically for Ford Ranger and Ford Transit 2.2 TDCi diesel engines. This precision-manufactured oil supply line ensures a consistent, clean flow of pressurised engine oil directly to the turbocharger’s bearings — vital for lubrication, cooling and long-term durability under extreme heat and high rotational speeds. Over time, original oil feed pipes can become clogged by carbon deposits or weakened by heat cycling, leading to oil starvation, turbo wear or even complete failure. Replacing the old or damaged pipe with this OEM-equivalent unit from DDP Autoparts restores reliable turbo lubrication, avoids costly turbocharger damage, and helps maintain smooth, efficient performance in your Ford 2.2 TDCi vehicle.

OEM Number: BK3Q6K679BA, BK3Q6K679AB, BK3Q6K679AC, 2052535, 1763292, 1717699

Quantity: 1

Make	Model	Variant	Type	Engine	Chassis	Year
Ford	Ranger	Diesel Pickup	2.2 TDCi	2198cc 110KW 150HP ENQJ;GBVAJQJ	RWD -- TKE	2011-2024
Ford	Ranger	Diesel Pickup	2.2 TDCi	2198cc 118KW 160HP GBVAJQJ;T22DD0P	RWD -- TKE	2015-2024
Ford	Ranger	Diesel Pickup	2.2 TDCi	2198cc 88KW 120HP ENPF;GBVAJPF	RWD -- TKE	2011-2024
Ford	Ranger	Diesel Pickup	2.2 TDCi	2198cc 92KW 125HP ENQW;GBVAJQW	RWD -- TKE	2011-2024
Ford	Ranger	Diesel Pickup	2.2 TDCi	2198cc 96KW 131HP T22DD0P	RWD -- TKE	2015-2024
Ford	Ranger	Diesel Pickup	2.2 TDCi 4x4	2198cc 110KW 150HP ENQJ;GBVAJQJ	AWD -- TKE	2011-2024
Ford	Ranger	Diesel Pickup	2.2 TDCi 4x4	2198cc 118KW 160HP GBVAJQJ;T22DD0P	AWD -- TKE	2015-2024
Ford	Ranger	Diesel Pickup	2.2 TDCi 4x4	2198cc 92KW 125HP ENQW;GBVAJQW	AWD -- TKE	2011-2024
Ford	Ranger	Diesel Pickup	2.2 TDCi 4x4	2198cc 96KW 131HP T22DD0P	AWD -- TKE	2015-2024
Ford	Transit	Diesel Bus	2.2 TDCi	2198cc 103KW 140HP PGFA;PGFB;UHFA;UHFB;UHFC	FWD -- FD_ _,FB_ _,FS_ _,FZ_ _,FC_ _	2007-2014
Ford	Transit	Diesel Bus	2.2 TDCi	2198cc 114KW 155HP CVF5	FWD V363 FAD,FBD	2014-2018
Ford	Transit	Diesel Bus	2.2 TDCi	2198cc 74KW 100HP DRF5;DRFF;DRFG	FWD V363 FAD,FBD	2013-2018
Ford	Transit	Diesel Bus	2.2 TDCi	2198cc 74KW 100HP DRFA;DRFB;DRFC;DRFD;DRFE	FWD -- FD_ _,FB_ _,FS_ _,FZ_ _,FC_ _	2011-2014
Ford	Transit	Diesel Bus	2.2 TDCi	2198cc 92KW 125HP CY14;CYF5;CYFG;USF6	FWD V363 FAD,FBD	2013-2018
Ford	Transit	Diesel Bus	2.2 TDCi	2198cc 92KW 125HP CYFA;CYFB;CYFC;CYFD	FWD -- FD_ _,FB_ _,FS_ _,FZ_ _,FC_ _	2011-2014
Ford	Transit	Diesel Bus	2.2 TDCi 4x4	2198cc 92KW 125HP CY24;CYR5	AWD V363 FAD,FBD	2013-2018
Ford	Transit	Diesel Bus	2.2 TDCi AWD	2198cc 114KW 155HP CV24;CVR5	AWD V363 FAD,FBD	2015-2018
Ford	Transit	Diesel Bus	2.2 TDCi RWD	2198cc 100KW 135HP USRA;USRB	RWD -- FD_ _,FB_ _,FS_ _,FZ_ _,FC_ _	2011-2014
Ford	Transit	Diesel Bus	2.2 TDCi RWD	2198cc 114KW 155HP CV24;CVR5;UYR6	RWD V363 FAD,FBD	2013-2018
Ford	Transit	Diesel Bus	2.2 TDCi RWD	2198cc 74KW 100HP DRR5	RWD V363 FAD,FBD	2013-2018
Ford	Transit	Diesel Bus	2.2 TDCi RWD	2198cc 74KW 100HP DRRA;DRRB;DRRC	RWD -- FD_ _,FB_ _,FS_ _,FZ_ _,FC_ _	2011-2014
Ford	Transit	Diesel Bus	2.2 TDCi RWD	2198cc 92KW 125HP CYR5;USR6	RWD V363 FAD,FBD	2013-2018
Ford	Transit	Diesel Bus	2.2 TDCi RWD	2198cc 92KW 125HP CYRA	RWD -- FD_ _,FB_ _,FS_ _,FZ_ _,FC_ _	2011-2014
Ford	Transit	Diesel Bus	2.2 TDCi RWD	2198cc 99KW 135HP UHR5	RWD V363 FAD,FBD	2013-2018
Ford	Transit	Diesel Chassis Cab	2.2 TDCi	2198cc 103KW 140HP PGFA;PGFB;UHFA;UHFB;UHFC	FWD -- FM_ _,FN_ _,FF_ _	2007-2011
Ford	Transit	Diesel Chassis Cab	2.2 TDCi	2198cc 114KW 155HP CVF5	FWD V363 FED,FFD,VQ	2013-2018
Ford	Transit	Diesel Chassis Cab	2.2 TDCi	2198cc 74KW 100HP DRF5;DRFF;DRFG	FWD V363 FED,FFD,VQ	2013-2018
Ford	Transit	Diesel Chassis Cab	2.2 TDCi	2198cc 74KW 100HP DRFA;DRFB;DRFC;DRFD;DRFE	FWD -- FM_ _,FN_ _,FF_ _	2011-2014
Ford	Transit	Diesel Chassis Cab	2.2 TDCi	2198cc 92KW 125HP CY14;CYF5;CYFG;USF6	FWD V363 FED,FFD,VQ	2013-2018
Ford	Transit	Diesel Chassis Cab	2.2 TDCi	2198cc 92KW 125HP CYFA;CYFB;CYFC;CYFD	FWD -- FM_ _,FN_ _,FF_ _	2011-2014
Ford	Transit	Diesel Chassis Cab	2.2 TDCi 4x4	2198cc 114KW 155HP CV24;CVR5	AWD V363 FED,FFD,VQ	2013-2018
Ford	Transit	Diesel Chassis Cab	2.2 TDCi 4x4	2198cc 92KW 125HP CY24;CYR5	AWD V363 FED,FFD,VQ	2013-2018
Ford	Transit	Diesel Chassis Cab	2.2 TDCi 4x4	2198cc 92KW 125HP CYRB;CYRC	AWD -- FM_ _,FN_ _,FF_ _	2011-2014
Ford	Transit	Diesel Chassis Cab	2.2 TDCi RWD	2198cc 114KW 155HP CV24;CVR5;CYR5;UYR6	RWD V363 FED,FFD,VQ	2013-2018
Ford	Transit	Diesel Chassis Cab	2.2 TDCi RWD	2198cc 114KW 155HP CVRA;CVRB;CVRC	RWD -- FM_ _,FN_ _,FF_ _	2011-2014
Ford	Transit	Diesel Chassis Cab	2.2 TDCi RWD	2198cc 74KW 100HP DRR5	RWD V363 FED,FFD,VQ	2013-2018
Ford	Transit	Diesel Chassis Cab	2.2 TDCi RWD	2198cc 74KW 100HP DRRA;DRRB;DRRC	RWD -- FM_ _,FN_ _,FF_ _	2011-2014
Ford	Transit	Diesel Chassis Cab	2.2 TDCi RWD	2198cc 92KW 125HP CYR5;USR6	RWD V363 FED,FFD,VQ	2013-2018
Ford	Transit	Diesel Chassis Cab	2.2 TDCi RWD	2198cc 92KW 125HP CYRA	RWD -- FM_ _,FN_ _,FF_ _	2011-2014
Ford	Transit	Diesel Chassis Cab	2.2 TDCi RWD	2198cc 99KW 135HP UHR5	RWD V363 FED,FFD,VQ	2013-2018
Ford	Transit	Diesel Van	2.2 TDCi	2198cc 103KW 140HP PGFA;PGFB;UHFA;UHFB;UHFC	FWD -- FA_ _	2007-2014
Ford	Transit	Diesel Van	2.2 TDCi	2198cc 114KW 155HP CVF5	FWD V363 FCD,FDD	2013-2018
Ford	Transit	Diesel Van	2.2 TDCi	2198cc 74KW 100HP DRF5;DRFF;DRFG	FWD V363 FCD,FDD	2013-2018
Ford	Transit	Diesel Van	2.2 TDCi	2198cc 74KW 100HP DRFA;DRFB;DRFC;DRFD;DRFE	FWD -- FA_ _	2011-2014
Ford	Transit	Diesel Van	2.2 TDCi	2198cc 92KW 125HP CY14;CYF5;CYFG;USF6	FWD V363 FCD,FDD	2013-2018
Ford	Transit	Diesel Van	2.2 TDCi	2198cc 92KW 125HP CYFA;CYFB;CYFC;CYFD	FWD -- FA_ _	2011-2014
Ford	Transit	Diesel Van	2.2 TDCi 4x4	2198cc 114KW 155HP CV24;CVR5	AWD V363 FCD,FDD	2015-2018
Ford	Transit	Diesel Van	2.2 TDCi 4x4	2198cc 92KW 125HP CY24;CYR5	AWD V363 FCD,FDD	2013-2018
Ford	Transit	Diesel Van	2.2 TDCi 4x4	2198cc 92KW 125HP CYRB;CYRC	AWD -- FA_ _	2011-2014
Ford	Transit	Diesel Van	2.2 TDCi RWD	2198cc 100KW 136HP USRA;USRB	RWD -- FA_ _	2011-2014
Ford	Transit	Diesel Van	2.2 TDCi RWD	2198cc 114KW 155HP CV24;CVR5;UYR6	RWD V363 FCD,FDD	2013-2018
Ford	Transit	Diesel Van	2.2 TDCi RWD	2198cc 114KW 155HP CVRA;CVRB;CVRC	RWD -- FA_ _	2011-2014
Ford	Transit	Diesel Van	2.2 TDCi RWD	2198cc 74KW 100HP DRR5	RWD V363 FCD,FDD	2013-2018
Ford	Transit	Diesel Van	2.2 TDCi RWD	2198cc 74KW 100HP DRRA;DRRB;DRRC	RWD -- FA_ _	2011-2014
Ford	Transit	Diesel Van	2.2 TDCi RWD	2198cc 92KW 125HP CYR5;USR6	RWD V363 FCD,FDD	2013-2018
Ford	Transit	Diesel Van	2.2 TDCi RWD	2198cc 92KW 125HP CYRA	RWD -- FA_ _	2011-2014
Make	Model	Variant	Type	Engine	Chassis	Year

Our SKU: TFOBK3Q6K679BA_94

All our Turbo Oil Feed Pipe are OEM quality and reliable after market car parts. This Turbo Oil Feed Pipe is specifically compatible with Ford: Ranger, Transit, .

Please use our make-model-year tool to check this part's compatibility with your vehicle. However, please note that our tool is for reference only and we recommend that you check the part number on your old unit prior to purchasing.

If you are still not sure about the compatibility of this part to your vehicle, please supply us with the VIN number or Reg number in our live chat or contact form! You can also find details on our purchasing & shipping guide here.

❓ Frequently Asked Questions (FAQ)

Q: What does the turbo oil feed pipe do?
A: The turbo oil feed pipe delivers pressurised engine oil from the engine block (oil gallery) to the turbocharger’s centre housing — providing lubrication and cooling to the turbo’s high-speed bearings.

Q: Why is replacing the oil feed pipe important on a turbo vehicle?
A: Original pipes can become clogged with carbon or sludge, or develop cracks from high heat. A restricted or leaking feed pipe can starve the turbo of oil, which dramatically increases wear and may lead to turbo failure.

Q: Which vehicles is this turbo oil feed pipe compatible with?
A: This oil feed pipe is designed as a direct replacement for Ford Ranger and Ford Transit models equipped with the 2.2 TDCi diesel engine. Always check your VIN or existing part number to confirm fitment before purchasing.

Q: What are common signs that the turbo oil feed pipe needs replacing?
A: Typical symptoms include:

• Loss of turbo boost or power

• Turbo whining or strange noises

• Excessive exhaust smoke

• Oil leaks near the turbo area

• Rapid oil consumption

Q: Does this part come ready to fit, or are additional components required?
A: This is a direct-fit replacement line designed to OEM specifications. It is supplied ready to install, but proper sealing (copper crush washers / gaskets) and torque settings should be used during installation.

Q: Should I replace related parts when fitting a new oil feed pipe?
A: Yes — when replacing the feed pipe, it’s good practice to also inspect or replace the oil return pipe, gaskets, washers and to flush/clean oil passages. This reduces the risk of contaminants affecting the new turbo supply.

Q: Is professional installation recommended?
A: Yes. Because the oil feed system is critical to turbo health, professional fitting ensures correct sealing, torque and routing — preventing leaks or premature failure.

Q: Will replacing the turbo oil feed pipe help extend the life of my turbocharger?
A: Absolutely. A clean, properly fitted oil feed pipe ensures correct lubrication and cooling, which significantly prolongs turbo life and helps maintain consistent engine performance.
